Ply Angle Rules

The ply angle rules are used to set the true minimum and maximum allowable percentages of each ply angle (0/45/90) for tape and fabric. These rules are enforced during creation of effective laminates and discrete laminates.

How to change the ply angle rules for the entire project

Before the FEM is imported, the database defaults should be modified to define ply angle rules for the entire project. See Database Default Settings

To apply settings to full project after the FEM has been imported..

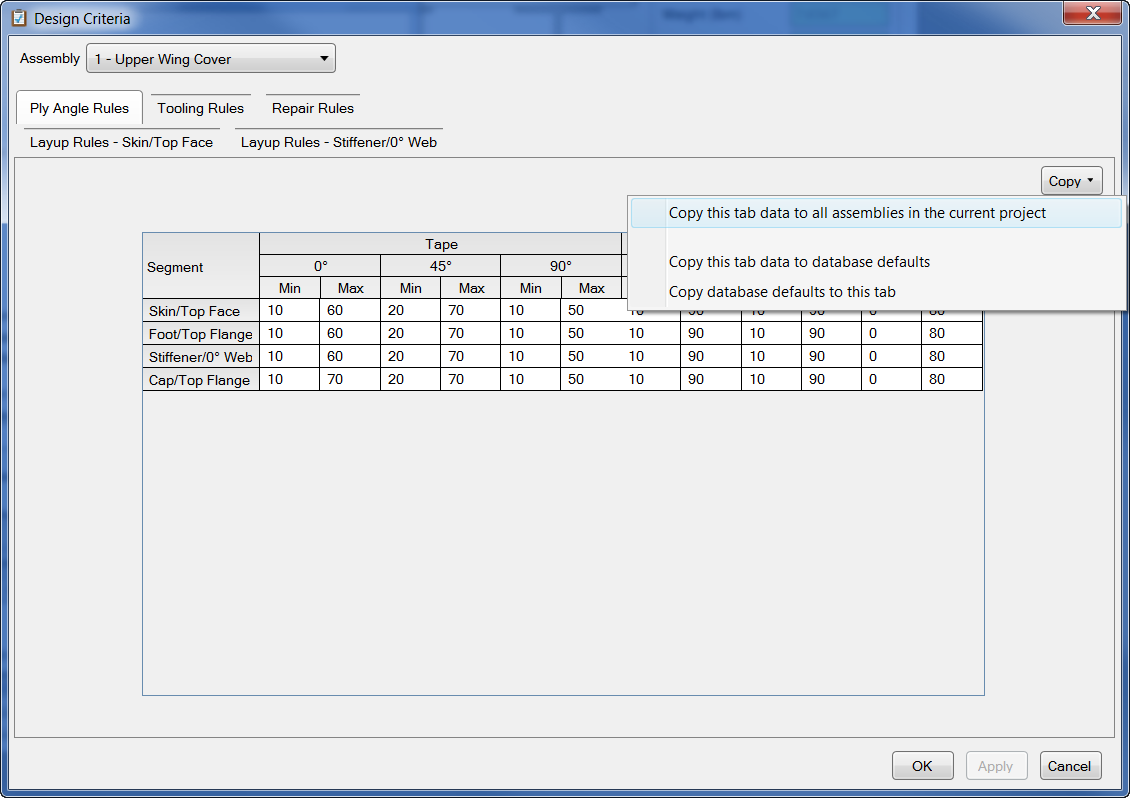

  1. Change the ply angle settings on the Design Criteria form.
  2. Select "Copy" to apply these settings to all assemblies in the project.
